Provides great savings in air conditioning in both cold and warm seasons
Coil height
1'20m
Linear meters
25, 47 or 83m
Thickness
11mm
Reflection index
95%
Thermal resistance
from 1,13 m² K/W
Thermal conductivity
0,037W/m·K
Description
Termicland® N9 incorporates two layers: a layer of pure aluminum and another of big bubble plastic reinforced with sealed air. It is designed to thermally insulate air conditioning ducts. Whether these are circular or rectangular, covering them with Termicland® N9 ensures that both heat and cold are not lost.
It is also used in the logistics sector, since its properties allow it to protect loads of great weight and volume that require stable temperature and humidity during transport. With this packaging it is possible to keep the temperature and humidity controlled in shipments. In addition, with the use of cold accumulators or other cooling elements, an even longer duration of thermal protection is achieved.
The big reinforced polyethylene bubble provides reliability and resistance, at the same time that it allows to multiply by 2.5 the sealed air in relation to the standard bubble, improving the resistance to the flow of heat or conductive cold.
By incorporating pure aluminum instead of metallic plastic film, effective insulation is achieved, not only aesthetically. The metallic film may seem insulating at first glance, but the nature of the material makes it unfeasible.
With Termicland® N9 a high quality thermal insulation is achieved that acts by reflection (95% reflectivity).
Minimal thickness. Maximum thermal resistance.
The installation of this thin insulation (11mm) is equivalent to installing a traditional thick insulation (EPS, PUR, MW, with thicknesses of 70mm). Both offer the same thermal resistance, but with Termicland® N9 the square meters of usable construction area are fully exploited.
Likewise, Termicland Nº9 can be installed together with any traditional thick insulation (porex, rock or glass wool, cork, polyurethane, cellulose…) to further increase thermal resistance. But even without this traditional insulation, installing several layers of Termicland Nº9 will also multiply the coefficient of thermal resistance with the minimum thickness.

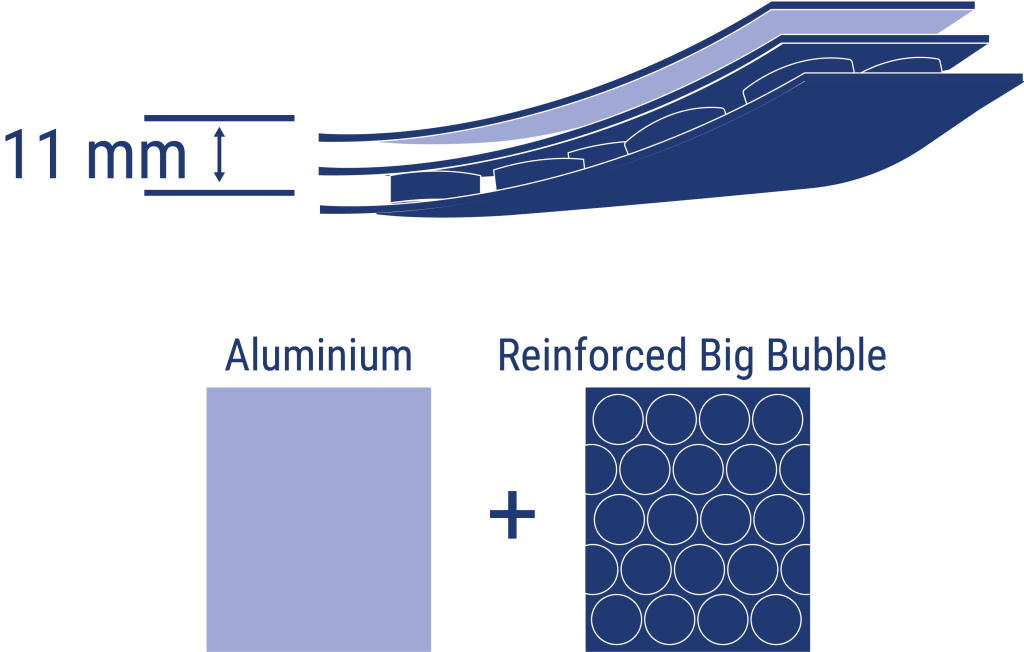

Product layers
Termicland® N9 is composed of 2 layers: Pure aluminum and reinforced big bubble plastic.
Applications
- High volume palletized products
- Ducts
- Wooden boxes for transport
- Pallet covers
- Shipping containers
- Air containers
Add-ons for installation
- Termicland® Strip: by applying this weather stripping to all kinds of ducts, an air chamber is created between them and Termicland® N9, which will significantly increase their thermal resistance.
- Aluminium Tape: the perfect bond for thermal and acoustic insulations.
- Metallized Film Tape: thermal bridges are avoided ensuring good insulation in the joints.
- Double sided adhesive tape: facilitates the union of reflective insulators and its fixing on all types of surfaces.
- Foamland Cutter®: custom designed to safely cut reflective insulation and packaging.
Delivery format
The delivery format is in a rolled coil protected with a 100% recyclable polyethylene bag.
Reasons to choose Termicland® N9
- Protects from outside heat in summer and keeps inside heat in winter
- very easy installation
- Thin and light material, low thickness
- Waterproof and moisture resistant
- Fire retardant and highly resistant to chemical agents
- At the same time, this material also helps to acoustically insulate a space. However, to achieve good acoustic insulation, we recommend our line of products designed specifically for this purpose.
