Provides great savings in air conditioning in both cold and warm seasons
Coil height
60cm
Linear meters
25m
Thickness
8mm
Reflection index
95%
Thermal resistance
from 1,68 m² K/W
Thermal conductivity
0,025W/m·K
Description
Termicland® N5 incorporates a layer of sealed air bubble plastic, another of pure aluminum and another of polyethylene foam. In addition, it incorporates a self-adhesive finish to facilitate installation. It is specially designed for the insulation of pillars and slab edges.
By incorporating pure aluminum instead of metallic plastic film, effective insulation is achieved, not only aesthetically. The metallic film may seem insulating at first glance, but the nature of the material makes it unfeasible.
With Termicland® N5, high-quality thermal insulation is achieved that acts by reflection (95% reflectivity).
Minimal thickness. Maximum thermal resistance.
The installation of this thin insulation (8mm) is equivalent to installing a traditional thick insulation (EPS, PUR, MW, with thicknesses of 90mm). Both offer the same thermal resistance, but with Termicland® N5 the square meters of usable construction area are fully exploited.
Likewise, Termicland Nº5 can be installed together with any traditional thick insulation (porex, rock or glass wool, cork, polyurethane, cellulose…) to further increase thermal resistance. But even without this traditional insulation, installing several layers of Termicland Nº5 will also multiply the coefficient of thermal resistance with the minimum thickness.

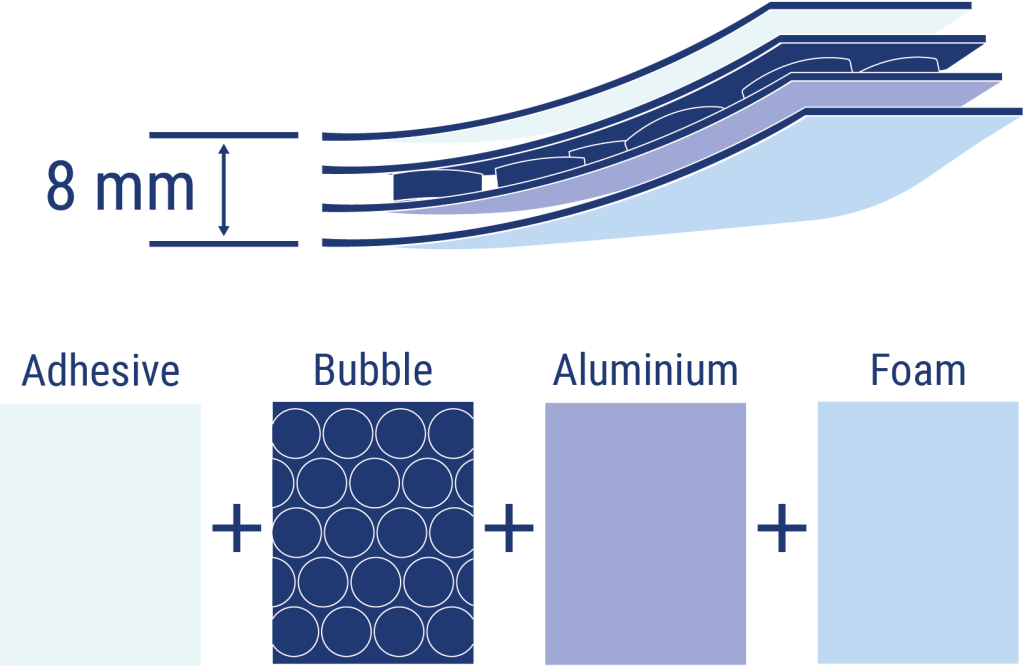

Product layers
Termicland® N5 is composed of 4 layers: Adhesive, Standard bubble wrap, Pure aluminum and Foam.
Applications
Horizontal Applications
1. Edges and slabs
Vertical Applications
2. Pillars
Delivery format
The delivery format is in a rolled coil protected with a 100% recyclable polyethylene bag.
Reasons to choose Termicland® N5
- Protects from outside heat in summer and keeps inside heat in winter
- Very easy installation
- Thin and light material
- Adaptable to any shape
- Waterproof and moisture resistant
- Fire retardant and highly resistant to chemical agents
- At the same time, this material also helps to acoustically insulate a space. However, to achieve good acoustic insulation, we recommend our line of products designed specifically for this purpose.
