Provides great savings in air conditioning in both cold and warm seasons
Coil height
1'20m
Linear meters
25m
Thickness
11mm
Reflection index
95%
Thermal resistance
from 1,68 m² K/W
Thermal conductivity
0,025W/m·K
Description
Termicland® N4 is a reflective thermal insulation specially designed to be applied between floors and on dividing walls. It is made up of a sheet of pure aluminum adhered to a resistant layer of polyethylene bubbles with sealed air inside. In addition, it incorporates a third layer of polyethylene foam to achieve better acoustic insulation.
Minimal thickness. Maximum thermal resistance.
The installation of this thin insulation (11mm) is equivalent to installing a traditional thick insulation (EPS, PUR, MW, with thicknesses of 70mm). Both offer the same thermal resistance, but with Termicland® N4 the square meters of usable construction area are fully exploited.
Likewise, Termicland Nº4 can be installed together with any traditional thick insulation (porex, rock or glass wool, cork, polyurethane, cellulose…) to further increase thermal resistance. But even without this traditional insulation, installing several layers of Termicland Nº4 will also multiply the coefficient of thermal resistance with the minimum thickness.

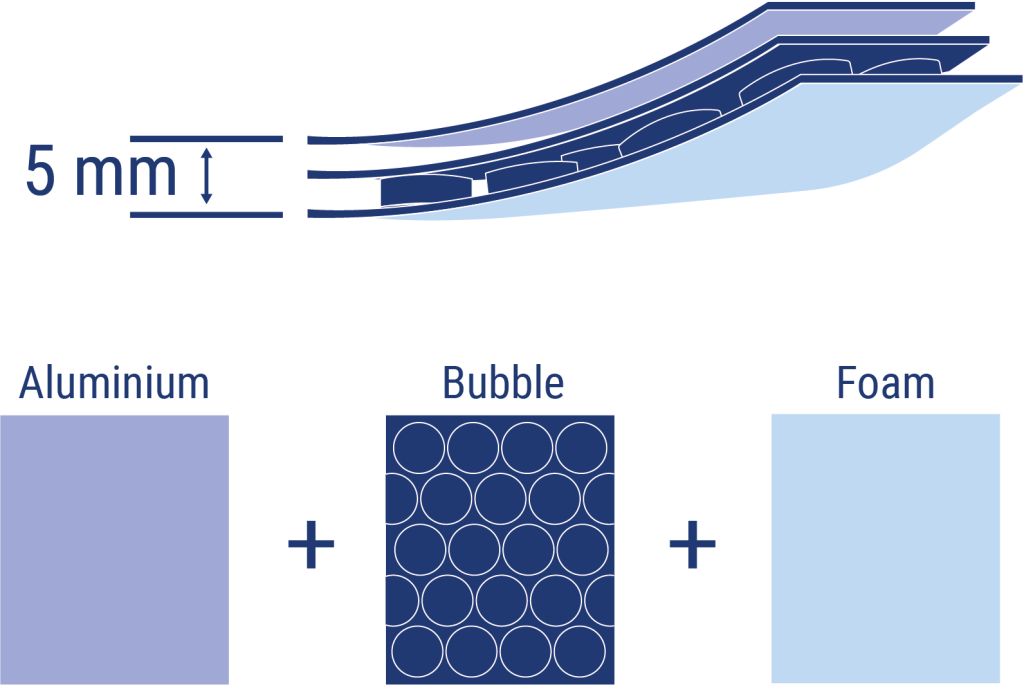

Product layers
Termicland® N4 is composed of 3 layers: Pure aluminum, Standard bubble plastic and Foam.
Applications
Vertical Applications
3. Walls
4. Vertical perimeter insulation
5. Party walls
Horizontal Applications
1. Under roofs
2. Covers
4. Horizontal perimeter insulation
6. Floors and slabs
Other applications
- Thermal bridge break
- Radon gas barrier
Add-ons for installation
- Termicland® Strip: by applying this weather stripping to all kinds of ducts, an air chamber is created between them and Termicland® N4, which will significantly increase their thermal resistance.
- Aluminium Tape: the perfect bond for thermal and acoustic insulations.
- Metallized Film Tape: thermal bridges are avoided ensuring good insulation in the joints.
- Double sided adhesive tape: facilitates the union of reflective insulators and its fixing on all types of surfaces.
- Foamland Cutter®: custom designed to safely cut reflective insulation and packaging.
Delivery format
The delivery format is in a rolled coil protected with a 100% recyclable polyethylene bag.
Reasons to choose Termicland® N4
- Specially designed for the insulation of dividing walls and between floors
- Protects from outside heat in summer and keeps inside heat in winter
- Very easy installation
- Thin and light material
- Adaptable to any shape
- Waterproof and moisture resistant
- Fire retardant and highly resistant to chemical agents
- At the same time, this material also helps to acoustically insulate a space (impact noise level improvement: 29 dB). However, to achieve good sound insulation, we recommend our line of products designed specifically for this purpose.
