Provides great savings in air conditioning in both cold and warm seasons
Coil height
1'20m
Linear meters
50m
Thickness
5mm
Reflection index
95%
Thermal resistance
from 1,13 m² K/W
Thermal conductivity
0,025W/m·K
Description
Termicland® N3 is a reflective thermal insulation specially designed to be applied in areas of difficult access. It is made up of a sheet of pure aluminum adhered to a resistant layer of polyethylene bubbles with sealed air inside. In addition, it incorporates a third self-adhesive layer that facilitates its installation.
Minimal thickness. Maximum thermal resistance.
The installation of this thin insulation (5mm) is equivalent to installing a traditional thick insulation (EPS, PUR, MW, with thicknesses of 50mm). Both offer the same thermal resistance, but with Termicland® N3 the square meters of usable construction area are fully utilized.
Likewise, Termicland Nº3 can be installed together with any traditional thick insulation (porex, rock or glass wool, cork, polyurethane, cellulose…) to further increase the thermal resistance. But, even without this traditional insulation, installing several layers of Termicland Nº3 will also multiply the coefficient of thermal resistance with the minimum thickness.

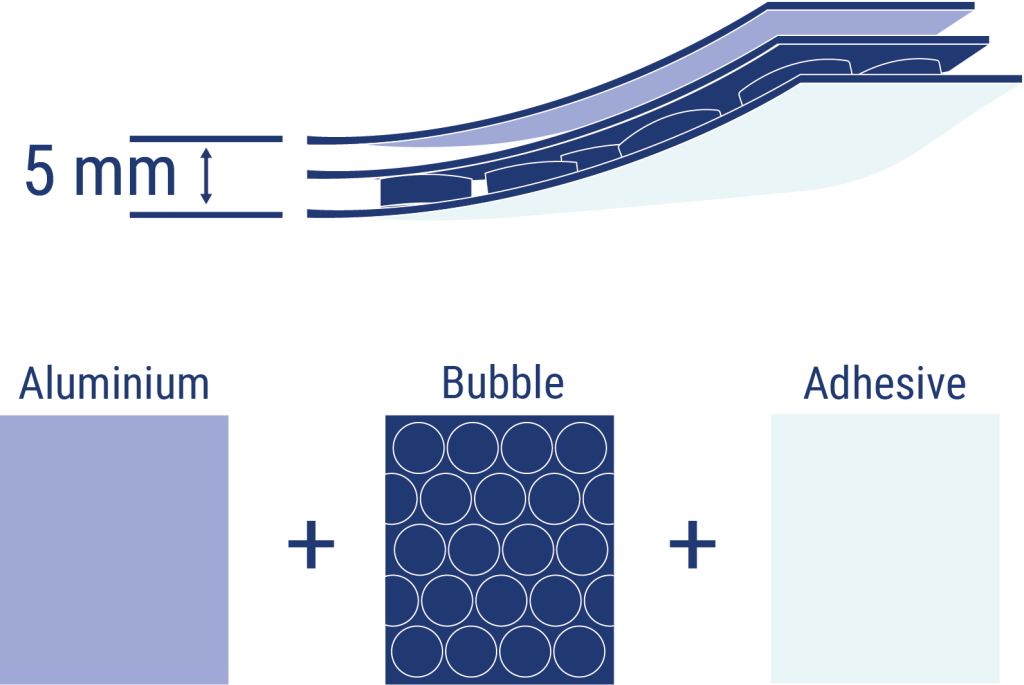

Product layers
Termicland® N3 is composed of 3 layers: Pure aluminum, Standard bubble wrap with sealed air and Adhesive.
Applications
Vertical Applications
4. Pillars
3. Walls
5. Party walls
7. Ventilated facade
Horizontal Applications
1. Under roof
2. Covers
6. Edges and slabs
Other applications of the product
- Thermal bridge break
- False ceilings
- Radon gas barrier
- Refrigeration units
- Air chamber
Delivery format
The delivery format of Termicland® N3 is in a rolled coil protected with a 100% recyclable polyethylene bag.
Reasons to choose Termicland® N3
- It increases the useful construction surface as it is a low-thickness material
- It is specially designed for isolating hard-to-reach areas
- 100% compatible with underfloor heating (without direct contact with the radiant source)
- It protects from outside heat in summer and keeps inside heat in winter
- The installation of this product is easy
- Adaptable to any kind of shape
- Waterproof and moisture resistant
- Fire retardant and highly resistant to chemical agents
- At the same time, this material also helps to acoustically insulate a space. However, to achieve good sound insulation, we recommend our line of products designed specifically for this purpose.
