Provides great savings in air conditioning in both cold and warm seasons
Coil height
1'30m
Linear meters
23m
Thickness
5mm
Reflection index
88%
Thermal resistance
from 1,32 m² K/W
Thermal conductivity
0,025W/m·K
Description
Termicland® N2 is a reflective thermal insulation specially designed for floors, composed of a sheet of pure aluminum adhered to a resistant double layer of polyethylene bubbles with sealed air.
Minimal thickness. Maximum thermal resistance.
The installation of this thin insulation (9mm) is equivalent to installing a traditional thick insulation (EPS, PUR, MW, with thicknesses of 70mm). Both offer the same thermal resistance, but with Termicland® N2 the square meters of usable construction area are fully exploited.
Likewise, Termicland Nº2 can be installed together with any traditional thick insulation (porex, rock or glass wool, cork, polyurethane, cellulose…) to further increase the thermal resistance. But, even without this traditional insulation, installing several layers of Termicland Nº2 will also multiply the coefficient of thermal resistance with the minimum thickness.

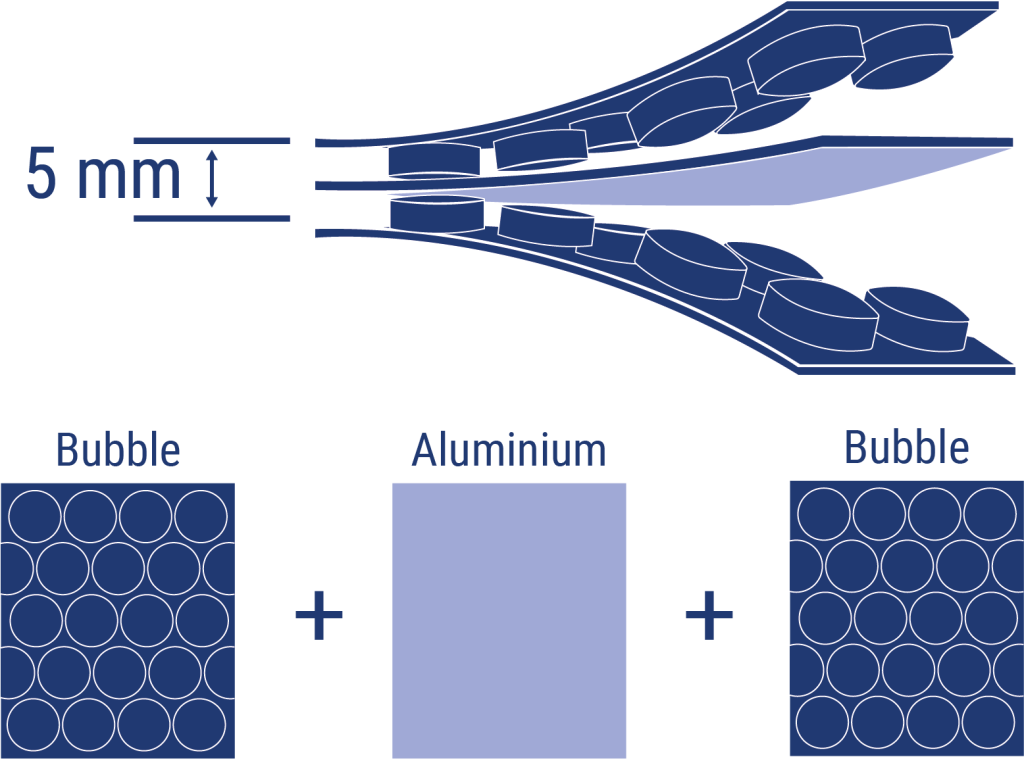

Product layers
Termicland® N2 is made up of 3 layers: Standard Bubble Wrap, Pure Aluminum and Standard Bubble Wrap.
Applications
Horizontal Applications
Floors and slabs
Add-ons for installation
- Aluminium Tape: the perfect bond for thermal and acoustic insulations.
- Metallized Film Tape: thermal bridges are avoided ensuring good insulation in the joints.
- Double sided adhesive tape: facilitates the union of reflective insulators and its fixing on all types of surfaces.
- Foamland Cutter®: custom designed to safely cut reflective insulation and packaging.
Delivery format
The delivery format of Termicland N2 is in a rolled coil protected with a 100% recyclable polyethylene bag.
Reasons to choose Termicland® N2
- Increase in useful construction surface as it is a low-thickness material
- It is specially designed for the insulation of floors and slabs
- 100% compatible with underfloor heating (without direct contact with the radiant source)
- It protects from outside heat in summer and keeps inside heat in winter
- Very easy installation
- Adaptable to any shape
- Waterproof and moisture resistant
- Fire retardant and highly resistant to chemical agents
- Made with a minimum of 40% recycled material
- At the same time, this material also helps to acoustically insulate a space (impact noise level improvement: 27 dB). However, to achieve good sound insulation, we recommend our line of products designed specifically for this purpose
